At KiSS Technology and Cisco I designed I/O back panel layouts and silk screen graphics for a number of media players, PVRs, A/V Receivers and set-top boxes for both their own product lineups as well as ones created for customers such as JAMO and Cinea. I designed the product logos and silk-screen for the front panels as well.
Below are a few examples of I/O back panels I designed for KiSS Technology’s line of A/V products.

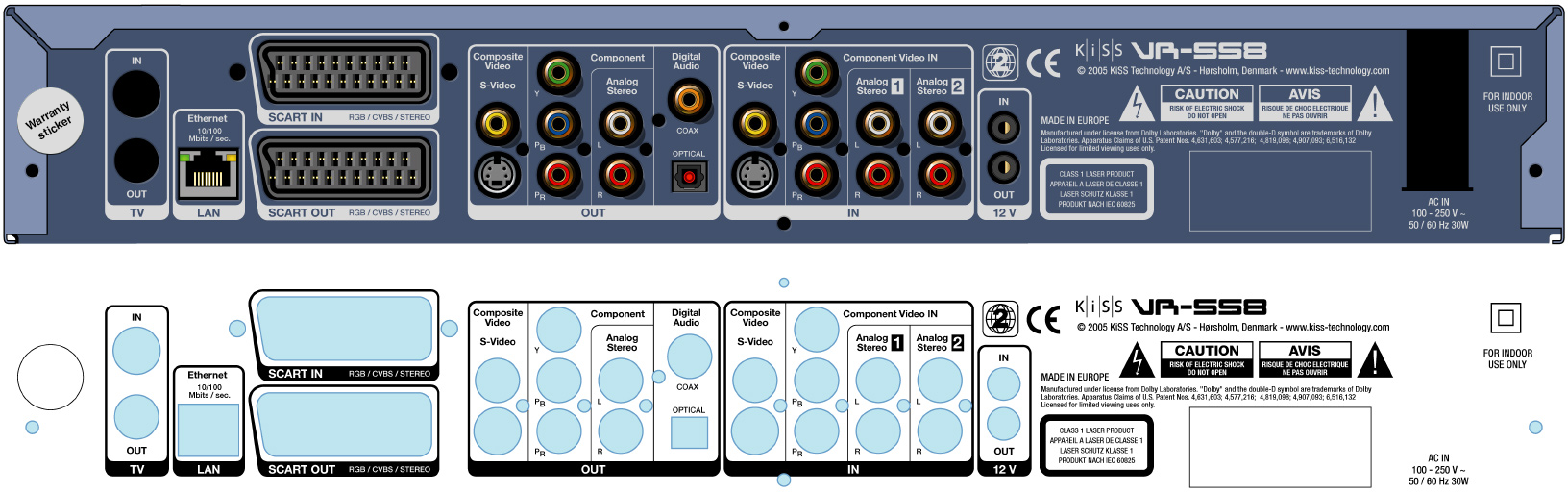

VR-558

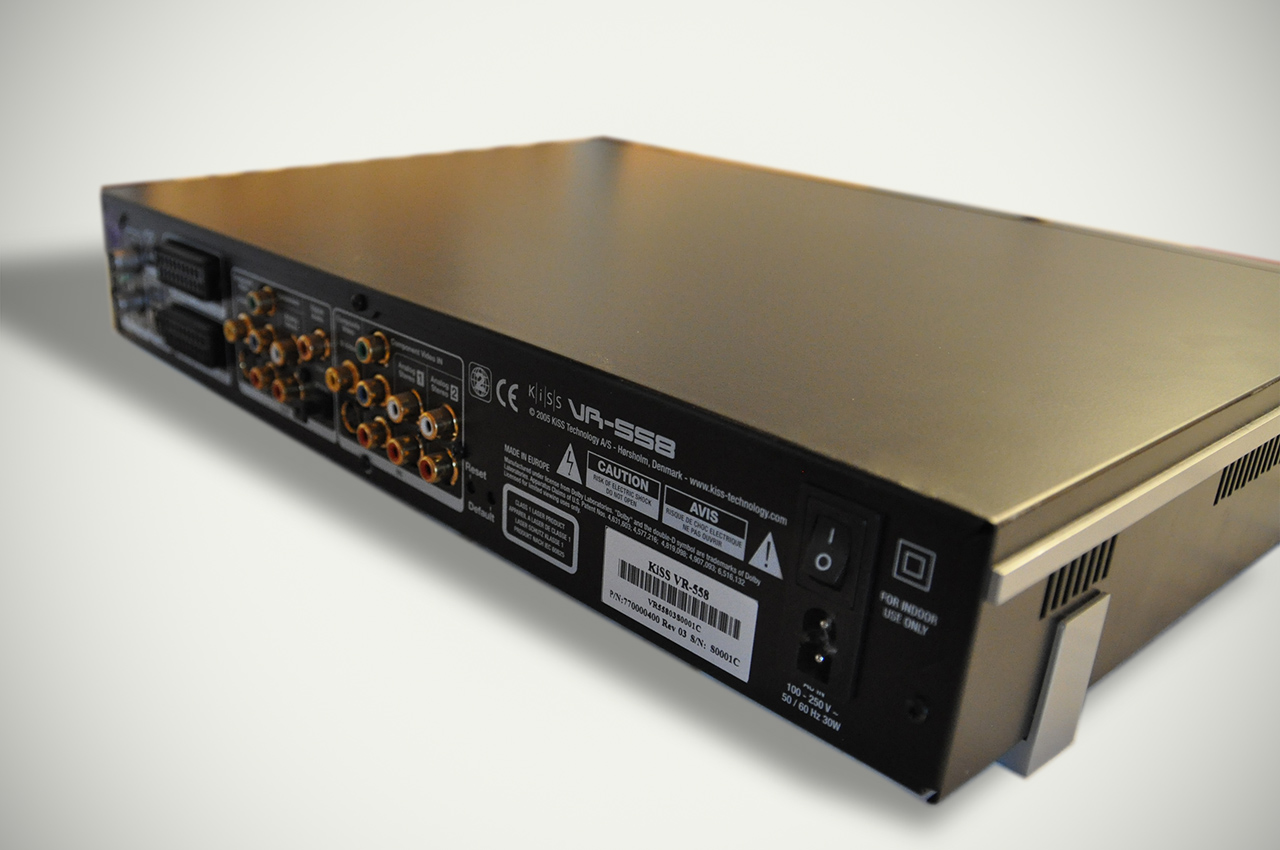

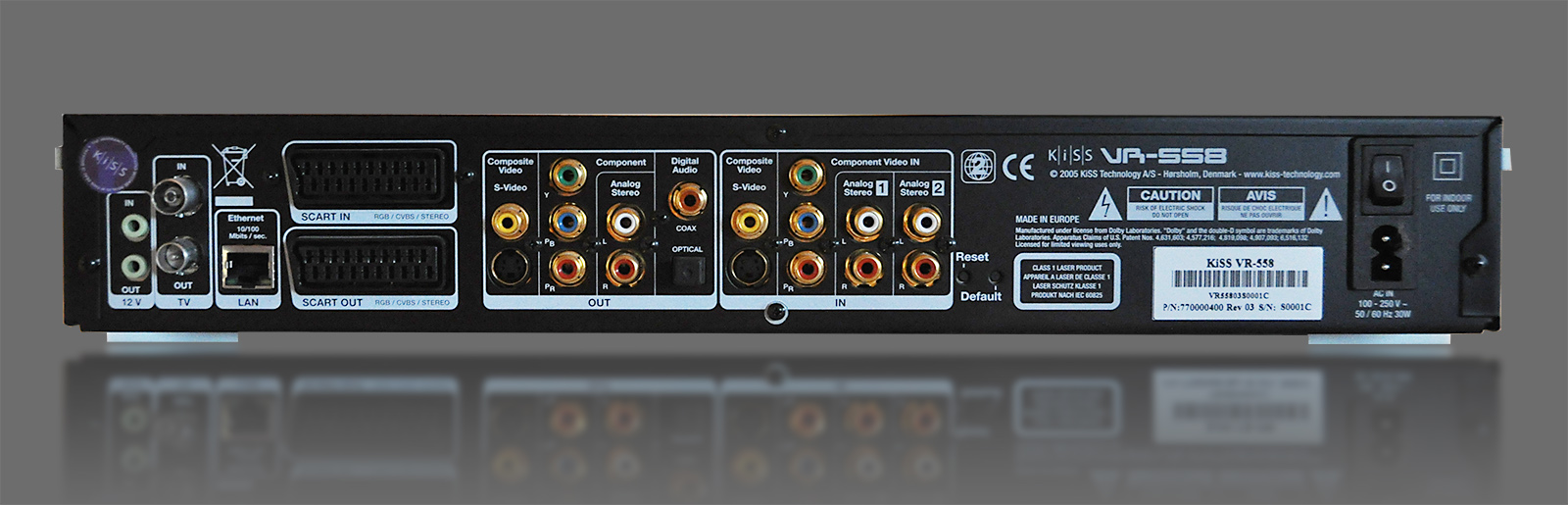

The VR-558 was the HD follow-up to KiSS Technology’s flagship PVR product, the DP-558. The photos show the final product.
L-430

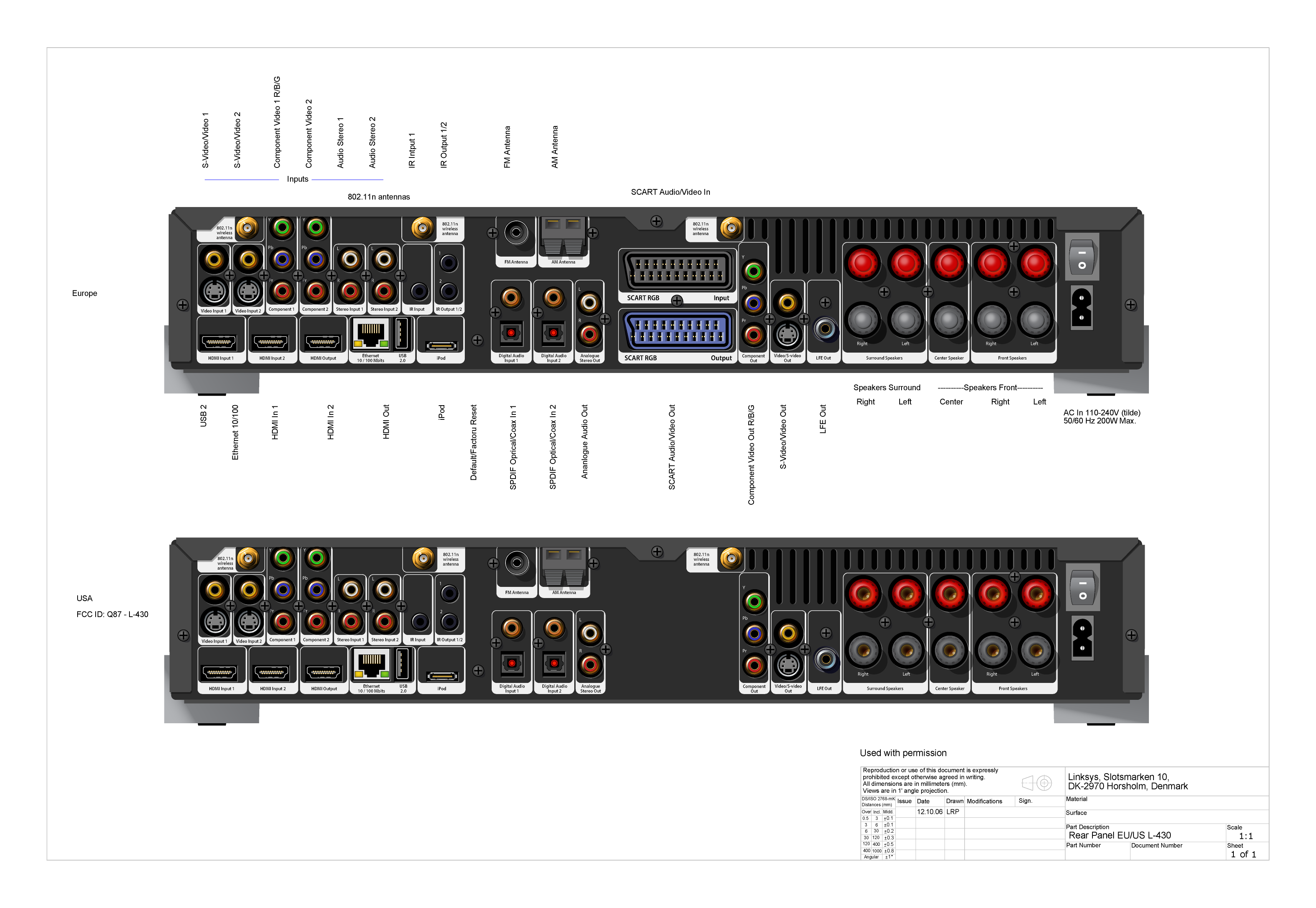

The L-430 was an A/V receiver designed for Linksys and JAMO. Once again, I did the I/O panel previsualisations and silk screen graphics.

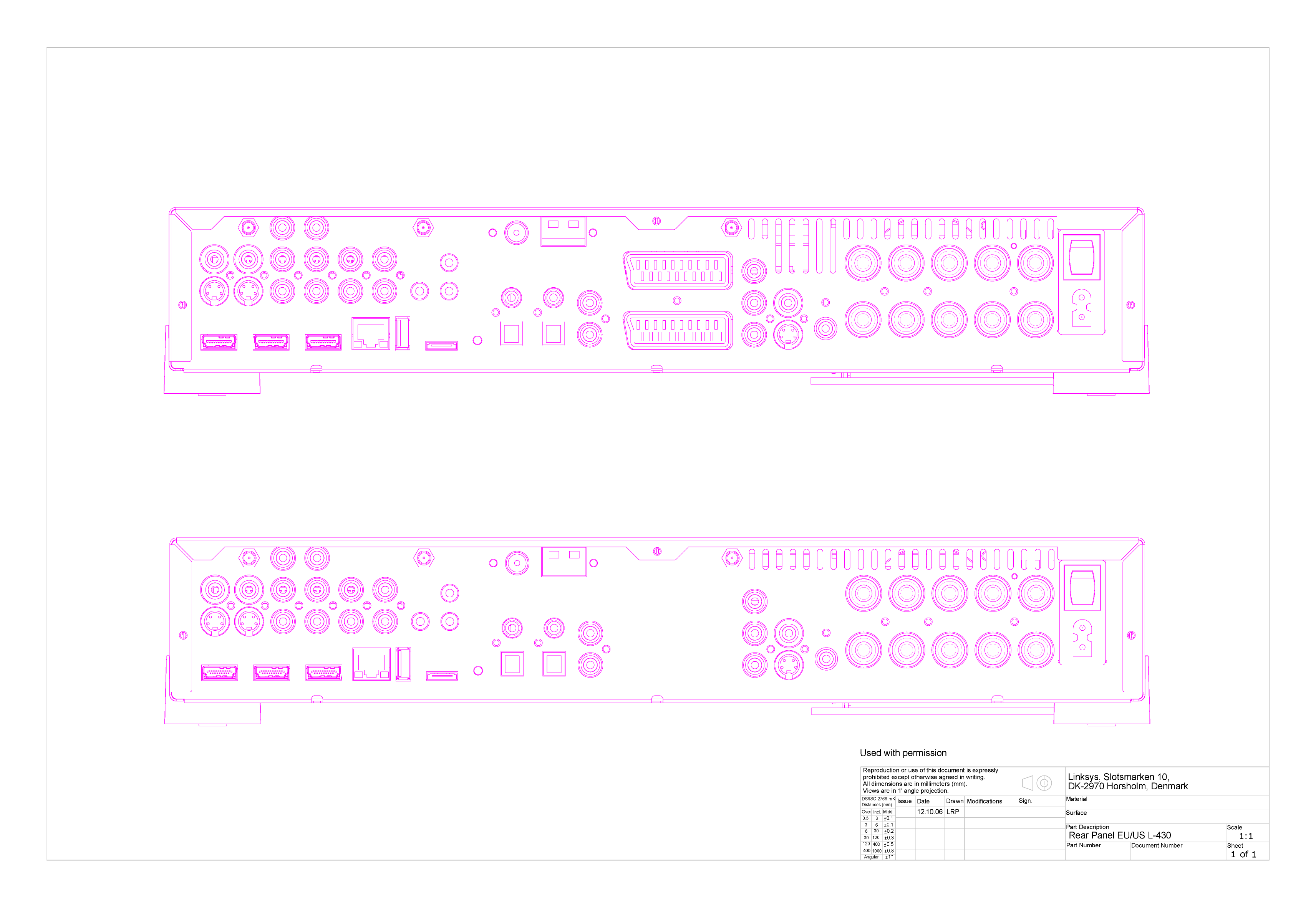

Original CAD drawing:

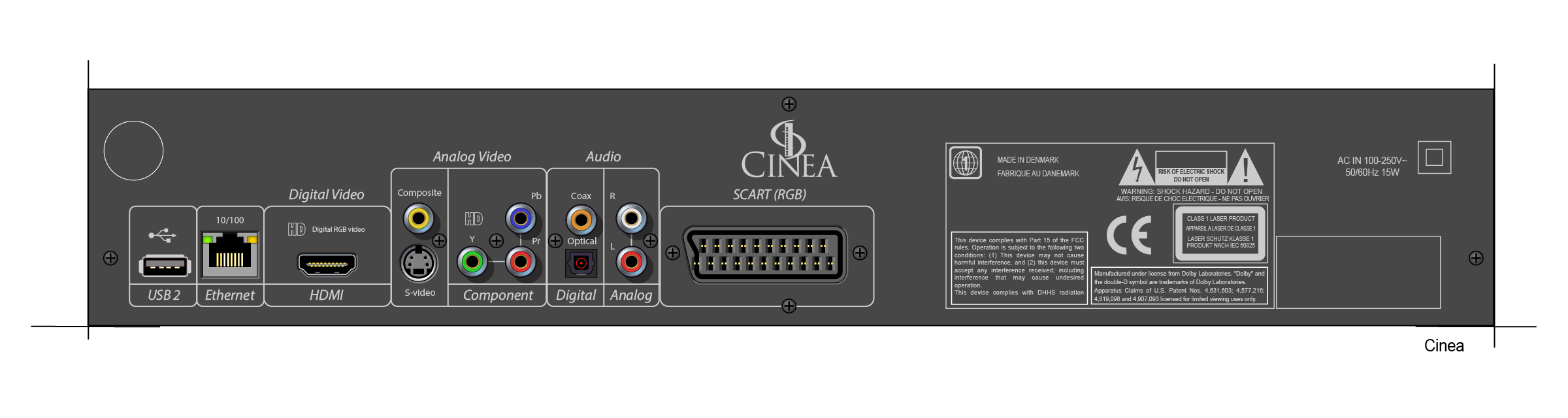

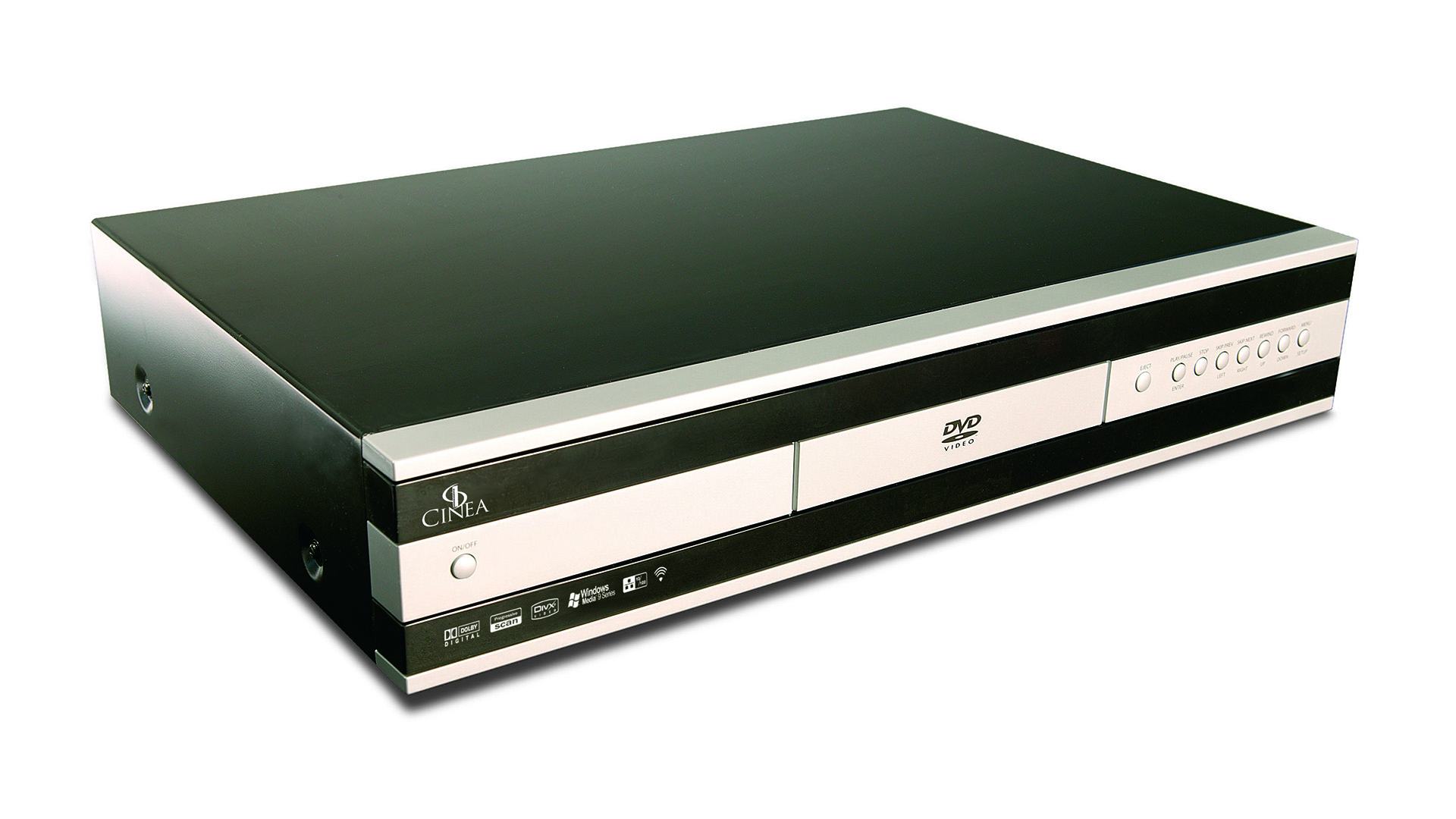

Cinea Secure Player
This product was designed for Cinea and the The Academy of Motion Picture Arts and Sciences Committee for the 77th Academy Awards (Oscars 2005). The DVD screeners sent to the members of the committee used a proprietary encrypted format that could only be played back on these specially commissioned DVD players. In addition to the I/O panel previsualisations and silk screen graphics, I also designed the UI for the player.
